Table 1. Specifications
|
Feature |
Description |
||||||||||||||
|
Performance |
|||||||||||||||
|
Switching capacity and forwarding rate All switches are wire speed and nonblocking |
Product name |
Capacity in Mpps (64-byte packets) |
Switching capacity (Gbps) |
||||||||||||
|
SG350X-8PMD |
29.76 |
80 |
|||||||||||||
|
SG350X-12PMV |
148.80 |
200 |
|||||||||||||
|
SG350X-24 |
95.23 |
128 |
|||||||||||||
|
SG350X-24P |
95.23 |
128 |
|||||||||||||
|
SG350X-24MP |
95.23 |
128 |
|||||||||||||
|
SG350X-24PD |
104.16 |
140 |
|||||||||||||
|
SG350X-24PV |
142.85 |
192 |
|||||||||||||
|
SG350X-48 |
130.94 |
176 |
|||||||||||||
|
SG350X-48P |
130.94 |
176 |
|||||||||||||
|
SG350X-48MP |
130.94 |
176 |
|||||||||||||
|
SG350X-48PV |
178.56 |
240 |
|||||||||||||
|
SG350XG-2F10 |
178.56 |
240 |
|||||||||||||
|
SG350XG-24F |
357.12 |
480 |
|||||||||||||
|
SG350XG-24T |
357.12 |
480 |
|||||||||||||
|
SG350XG-48T |
714.24 |
960 |
|||||||||||||
|
SX350X-08 |
119.05 |
160 |
|||||||||||||
|
SX350X-12 |
178.56 |
240 |
|||||||||||||
|

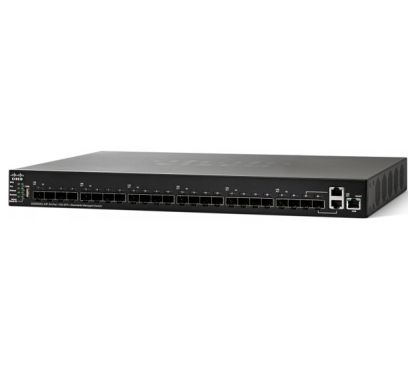

SX350X-24F |
357.12 |
480 |
|||||||||||||
|
SX350X-24 |
357.12 |
480 |
|||||||||||||
|
SX350X-52 |
755.81 |
1040 |
|||||||||||||
|
Layer 2 switching |
|||||||||||||||
|
Spanning Tree Protocol |
Standard 802.1d spanning tree support Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported Rapid PVST+ (RPVST+); 126 instances are supported |
||||||||||||||
|
Port grouping and link aggregation |
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG
|
||||||||||||||
|
VLAN |
Support for up to 4094 active VLANs simultaneously; port-based and 802.1Q tag-based VLANs; MAC-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Guest VLAN, unauthenticated VLAN, protocol-based VLAN, IP subnet-based VLAN, CPE VLAN Dynamic VLAN assignment using RADIUS server along with 802.1X client authentication |
||||||||||||||
|
Voice VLAN |
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices |
||||||||||||||
|
Multicast TV VLAN |
Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
||||||||||||||
|
VLAN translation |
Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface, Customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN |
||||||||||||||
|
Q-in-Q |
VLANs transparently cross over a service provider network while isolating traffic among customers |
||||||||||||||
|
Selective Q-in-Q |
Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs Selective Q-in-Q also allows configuration of the EtherType (TPID) of the S-VLAN tag Layer 2 protocol tunneling over Q-in-Q is also supported |
||||||||||||||
|
GVRP/GARP |
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain |
||||||||||||||
|
UDLD |
Unidirectional Link Detection (UDLD) monitors physical connections to detect unidirectional links caused by incorrect wiring or port faults to prevent forwarding loops and blackholing of traffic in switched networks |
||||||||||||||
|
DHCP relay at Layer 2 |
Relay of DHCP traffic to a DHCP server in a different VLAN. Works with DHCP option 82 |
||||||||||||||
|
IGMP (versions 1, 2, and 3) snooping |
Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; it supports 4000 multicast groups (source-specific multicasting is also supported) |
||||||||||||||
|
IGMP querier |
Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
||||||||||||||
|
HOL blocking |
Head-Of-Line (HOL) blocking |
||||||||||||||
|
Layer 3 |
|||||||||||||||
|
IPv4 routing |
Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces |
||||||||||||||
|
Wirespeed IPv6 static routing |
Up to 245 static routes and up to 106 IPv6 interfaces |
||||||||||||||
|
Layer 3 interface |
Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface |
||||||||||||||
|
CIDR |
Support for Classless Interdomain Routing (CIDR) |
||||||||||||||
|
DHCP server |
Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools and scopes Support for DHCP options |
||||||||||||||
|
DHCP relay at Layer 3 |
Relay of DHCP traffic across IP domains |
||||||||||||||
|
User Datagram Protocol (UDP) relay |
Relay of broadcast information across Layer 3 domains for application discovery or relaying of BOOTP/DHCP packets |
||||||||||||||
|
Stacking |
|||||||||||||||
|
Hardware stack |
Up to four units in a stack. Up to 208 ports managed as a single system with hardware failover |
||||||||||||||
|
High availability |
Fast stack failover delivers minimal traffic loss. Supports link aggregation across multiple units in a stack |
||||||||||||||
|
Plug-and-play stacking configuration and management |
Master and backup for resilient stack control Auto-numbering Hot swap of units in stack Ring and chain stacking options, auto-stacking port speed, flexible stacking port options |
||||||||||||||
|
High-speed stack interconnects |
Cost-effective high-speed 10G fiber and copper interfaces. Support LAG as stacking interconnects for even higher bandwidth |
||||||||||||||
|
Hybrid stack |
A mix of SG350X, SG350XG, and SX350X switches in the same stack (Gigabit and 10 Gigabit Ethernet) |
||||||||||||||
|
Security |
|||||||||||||||
|
SSH |
Secure Shell (SSH) is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH versions 1 and 2 are supported |
||||||||||||||
|
SSL |
Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch |
||||||||||||||
|
IEEE 802.1X (authenticator role) |
RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single- and multiple-host mode, and single and multiple sessions Supports time-based 802.1X dynamic VLAN assignment |
||||||||||||||
|
IEEE 802.1X supplicant |
A switch can be configured to act as a supplicant to another switch. This enables extended secure access in areas outside the wiring closet (such as conference rooms) |
||||||||||||||
|
Web-based authentication |
Web-based authentication provides Network Admission Control (NAC) through a web browser to any host devices and operating systems |
||||||||||||||
|
STP BPDU Guard |
A security mechanism to protect the networks from invalid configurations. A port enabled for Bridge Protocol Data Unit (BPDU) Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops |
||||||||||||||
|
STP Root Guard |
Prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes |
||||||||||||||
|
DHCP snooping |
Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP servers |
||||||||||||||
|
IP Source Guard (IPSG) |
When IPSG is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing |
||||||||||||||
|
Dynamic ARP Inspection (DAI) |
The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks |
||||||||||||||
|
IP/MAC/Port Binding (IPMB) |
The preceding features (DHCP snooping, IPSG, and DAI) work together to prevent DoS attacks in the network, thereby increasing network availability |
||||||||||||||
|
Secure Core Technology (SCT) |
Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received |
||||||||||||||
|
Secure Sensitive Data (SSD) |
A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user |
||||||||||||||
|
Trustworthy systems |
Trustworthy systems provide a highly secure foundation for Cisco products Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC]) Image signing and Secure Boot on select models (SG350X-12PMV, SG350X-24PV, SG350X-48PV, and all SX350X models) |
||||||||||||||
|
Private VLAN |
Provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks |
||||||||||||||
|
Port security |
Provides the ability to lock source MAC addresses to ports and limit the number of learned MAC addresses |
||||||||||||||
|
RADIUS and TACACS+ |
Supports RADIUS and TACACS authentication. Switch functions as a client |
||||||||||||||
|
RADIUS accounting |
The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session |
||||||||||||||
|
Storm control |
Broadcast, multicast, and unknown unicast |
||||||||||||||
|
DoS prevention |
Denial-of-Service (DoS) attack prevention |
||||||||||||||
|
Multiple user privilege levels in Command-Line Interface (CLI) |
Level 1, 7, and 15 privilege levels |
||||||||||||||
|
ACLs |
Support for up to 1000 entries for SG350X models Support for up to 2000 entries for all other models Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag. ACLs can be applied on both ingress and egress sides Time-based ACLs are supported |
||||||||||||||
|
Quality of service |
|||||||||||||||
|
Priority levels |
8 hardware queues |
||||||||||||||
|
Scheduling |
Strict priority and Weighted Round-Robin (WRR) |
||||||||||||||
|
Class of service |
Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence, Type of Service (ToS), and DSCP based; DiffServ; classification and remarking ACLs, trusted QoS Queue assignment based on Differentiated Services Code Point (DSCP) and class of service (802.1p/CoS) |
||||||||||||||
|
Rate limiting |
Ingress policer; egress shaping and ingress rate control; per VLAN, per port, and flow based; Two-Rate Three-Color (2R3C) policing |
||||||||||||||
|
Congestion avoidance |
A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
||||||||||||||
|
iSCSI traffic optimization |
A mechanism for giving priority to SCSI over IP (iSCSI) traffic over other types of traffic |
||||||||||||||
|
Standards |
|||||||||||||||
|
Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3bz 2.5GBase-T and 5GBase-T, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbit/s Ethernet over fiber for LAN, IEEE 802.3an 10GBase-T 10 Gbit/s Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, NBASE-T, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
||||||||||||||
|
IPv6 |
|||||||||||||||
|
IPv6 |
IPv6 host mode IPv6 over Ethernet dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discovery Duplicate Address Detection (DAD) ICMP v6 IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel support USGv6 and IPv6 Gold logo certified |
||||||||||||||
|
IPv6 QoS |
Prioritize IPv6 packets in hardware |
||||||||||||||
|
IPv6 ACL |
Drop or rate-limit IPv6 packets in hardware |
||||||||||||||
|
IPv6 First Hop Security |
RA guard ND inspection DHCP v6 guard Neighbor binding table (snooping and static entries) Neighbor binding integrity check |
||||||||||||||
|
Multicast Listener Discovery (MLD v1/2) snooping |
Deliver IPv6 multicast packets only to the required receivers |
||||||||||||||
|
IPv6 applications |
Web/SSL, Telnet Server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial FTP (TFTP), SNMP, RADIUS, Syslog, DNS client, DHCP Client, DHCP Autoconfig, IPv6 DHCP Relay, TACACS |
||||||||||||||
|
IPv6 RFC supported |
RFC 4443 (which obsoletes RFC 2463): ICMP v6 RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture RFC 4291: IP Version 6 Addressing Architecture RFC 2460: IPv6 Specification RFC 4861 (which obsoletes RFC 2461): Neighbor Discovery for IPv6 RFC 4862 (which obsoletes RFC 2462): IPv6 Stateless Address Autoconfiguration RFC 1981: Path MTU Discovery RFC 4007: IPv6 Scoped Address Architecture RFC 3484: Default address selection mechanism RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling RFC 4293; MIB IPv6: Textual Conventions and General Group RFC 3595; Textual Conventions for IPv6 Flow Label |
||||||||||||||
|
Management |
|||||||||||||||
|
Web user interface |
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS) Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search |
||||||||||||||
|
Smart Network Application |
An innovative network-level monitoring and management tool embedded in Cisco 250 to 550X Series switches. It can discover network topology, display link status, monitor events, apply configurations, and upgrade software images across multiple switches in the network |
||||||||||||||
|
SNMP |
SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM) |
||||||||||||||
|
Standard MIBs |
lldp-MIB lldpextdot1-MIB lldpextdot3-MIB lldpextmed-MIB rfc2674-MIB rfc2575-MIB rfc2573-MIB rfc2233-MIB rfc2013-MIB rfc2012-MIB rfc2011-MIB RFC-1212 RFC-1215 SNMPv2-CONF SNMPv2-TC p-bridge-MIB q-bridge-MIB rfc1389-MIB rfc1493-MIB rfc1611-MIB rfc1612-MIB rfc1850-MIB rfc1907-MIB rfc2571-MIB rfc2572-MIB rfc2574-MIB rfc2576-MIB rfc2613-MIB rfc2665-MIB |
rfc2668-MIB rfc2737-MIB rfc2925-MIB rfc3621-MIB rfc4668-MIB rfc4670-MIB trunk-MIB tunnel-MIB udp-MIB draft-ietf-bridge-8021x-MIB draft-ietf-bridge-rstpmib-04-MIB draft-ietf-hubmib-etherif-mib-v3-00-MIB draft-ietf-syslog-device-MIB ianaaddrfamnumbers-MIB ianaifty-MIB ianaprot-MIB inet-address-MIB ip-forward-MIB ip-MIB RFC1155-SMI RFC1213-MIB SNMPv2-MIB SNMPv2-SMI SNMPv2-TM RMON-MIB rfc1724-MIB dcb-raj-DCBX-MIB-1108-MIB rfc1213-MIB rfc1757-MIB |
|||||||||||||
|
Private MIBs |
CISCOSB-lldp-MIB CISCOSB-brgmulticast-MIB CISCOSB-bridgemibobjects-MIB CISCOSB-bonjour-MIB CISCOSB-dhcpcl-MIB CISCOSB-MIB CISCOSB-wrandomtaildrop-MIB CISCOSB-traceroute-MIB CISCOSB-telnet-MIB CISCOSB-stormctrl-MIB CISCOSBssh-MIB CISCOSB-socket-MIB CISCOSB-sntp-MIB CISCOSB-smon-MIB CISCOSB-phy-MIB CISCOSB-multisessionterminal-MIB CISCOSB-mri-MIB CISCOSB-jumboframes-MIB CISCOSB-gvrp-MIB CISCOSB-endofmib-MIB CISCOSB-dot1x-MIB CISCOSB-deviceparams-MIB CISCOSB-cli-MIB CISCOSB-cdb-MIB CISCOSB-brgmacswitch-MIB CISCOSB-3sw2swtables-MIB CISCOSB-smartports-MIB CISCOSB-tbi-MIB CISCOSB-macbaseprio-MIB CISCOSB-env_mib-MIB CISCOSB-policy-MIB CISCOSB-sensor-MIB CISCOSB-aaa-MIB CISCOSB-application-MIB CISCOSB-bridgesecurity-MIB CISCOSB-copy-MIB CISCOSB-CpuCounters-MIB CISCOSB-Custom1BonjourService-MIB CISCOSB-dhcp-MIB CISCOSB-dlf-MIB CISCOSB-dnscl-MIB CISCOSB-embweb-MIB CISCOSB-fft-MIB CISCOSB-file-MIB CISCOSB-greeneth-MIB CISCOSB-interfaces-MIB CISCOSB-interfaces_recovery-MIB CISCOSB-ip-MIB CISCOSB-iprouter-MIB CISCOSB-ipv6-MIB CISCOSB-mnginf-MIB CISCOSB-lcli-MIB |
CISCOSB-iprouter-MIB CISCOSB-ipv6-MIB CISCOSB-mnginf-MIB CISCOSB-lcli-MIB CISCOSB-localization-MIB CISCOSB-mcmngr-MIB CISCOSB-localization-MIB CISCOSB-mcmngr-MIB CISCOSB-mng-MIB CISCOSB-physdescription-MIB CISCOSB-PoE-MIB CISCOSB-protectedport-MIB CISCOSB-rmon-MIB CISCOSB-rs232-MIB CISCOSB-SecuritySuite-MIB CISCOSB-snmp-MIB CISCOSB-specialbpdu-MIB CISCOSB-banner-MIB CISCOSB-syslog-MIB CISCOSB-TcpSession-MIB CISCOSB-traps-MIB CISCOSB-trunk-MIB CISCOSB-tuning-MIB CISCOSB-tunnel-MIB CISCOSB-udp-MIB CISCOSB-vlan-MIB CISCOSB-ipstdacl-MIB CISCOSB-eee-MIB CISCOSB-ssl-MIB CISCOSB-digitalkeymanage-MIB CISCOSB-qosclimib-MIB CISCOSB-tbp-MIB CISCOSB-stack-MIB CISCOSMB-MIB CISCOSB-secsd-MIB CISCOSB-draft-ietf-entmib-sensor-MIB CISCOSB-draft-ietf-syslog-device-MIB CISCOSB-rfc2925-MIB CISCO-SMI-MIB CISCOSB-DebugCapabilities-MIB CISCOSB-CDP-MIB CISCOSB-vlanVoice-MIB CISCOSB-EVENTS-MIB CISCOSB-sysmng-MIB CISCOSB-sct-MIB CISCO-TC-MIB CISCO-VTP-MIB CISCO-CDP-MIB |
|||||||||||||
|
RMON |
Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis |
||||||||||||||
|
IPv4 and IPv6 dual stack |
Coexistence of both protocol stacks to ease migration |
||||||||||||||
|
Firmware upgrade |
● Web browser upgrade (HTTP/HTTPS) and TFTP and SCP
● Upgrade can be initiated through console port as well
● Dual images for resilient firmware upgrades
|
||||||||||||||
|
Port mirroring |
Traffic on a port or LAG can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port |
||||||||||||||
|
VLAN mirroring |
Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port |
||||||||||||||
|
Flow-based redirection and mirroring |
Redirect or mirror traffic to a destination port or mirroring session based on flow |
||||||||||||||
|
Remote Switch Port Analyzer (RSPAN) |
Traffic can be mirrored across a Layer 2 domain to a remote port on a different switch for easier troubleshooting |
||||||||||||||
|
sFlow agent |
Switch can export sFlow samples to external collectors. sFlow provides visibility into network traffic down to the flow level |
||||||||||||||
|
DHCP (options 12, 66, 67, 82, 129, and 150) |
DHCP options facilitate tighter control from a central point (DHCP server), to obtain IP address, auto-configuration (with configuration file download), DHCP Relay, and host name |
||||||||||||||
|
Auto-configuration with secure copy (SCP) file download |
Enables secure mass deployment with protection of sensitive data |
||||||||||||||
|
Text-editable configurations |
Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment |
||||||||||||||
|
Smartports |
Simplifies configuration of QoS and security capabilities |
||||||||||||||
|
Auto Smartports |
Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments |
||||||||||||||
|
Secure Copy (SCP) |
Securely transfers files to and from the switch |
||||||||||||||
|
Textview CLI |
Scriptable CLI. A full CLI as well as a menu CLI are supported |
||||||||||||||
|
Cloud services |
Support for Cisco FindIT Network Manager and Active Advisor |
||||||||||||||
|
Embedded FindIT Network Probe |
Support for the embedded FindIT Network Probe running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the FindIT Network Probe on site |
||||||||||||||
|
Cisco Network Plug and Play (PnP) agent |
A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience Supports Cisco PnP Connect |
||||||||||||||
|
Localization |
Localization of GUI and documentation into multiple languages |
||||||||||||||
|
Login banner |
Configurable multiple banners for web as well as CLI |
||||||||||||||
|
Time-based port operation |
Link up or down based on user-defined schedule (when the port is administratively up) |
||||||||||||||
|
Other management |
Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS, port mirroring, TFTP upgrade, DHCP client, SNTP, Xmodem upgrade, cable diagnostics, Ping, syslog, Telnet client, SSH client, automatic time settings from management station |
||||||||||||||
|
Green (power efficiency) |
|||||||||||||||
|
Energy Detect |
Automatically turns power off on RJ-45 port when the switch detects a link down. Active mode is resumed without loss of any packets when the switch detects the link is up |
||||||||||||||
|
Cable length detection |
Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables |
||||||||||||||
|
EEE compliant (802.3az) |
Supports IEEE 802.3az on all 10 Gigabit Ethernet copper ports |
||||||||||||||
|
Disable port LEDs |
LEDs can be manually turned off to save energy |
||||||||||||||
|
General |
|||||||||||||||
|
Jumbo frames |
Frame sizes up to 9000 bytes. The default MTU is 2000 |
||||||||||||||
|
MAC table |
32,000 addresses on SG350XG and SX350X models 16,000 addresses on all other models |
||||||||||||||
|
Discovery |
|||||||||||||||
|
Bonjour |
The switch advertises itself using the Bonjour protocol |
||||||||||||||
|
LLDP (802.1ab) with LLDP-MED extensions |
Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones |
||||||||||||||
|
Cisco Discovery Protocol |
The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol |
||||||||||||||
|
Product specifications |
|||||||||||||||
|
Power over Ethernet |
The following switches support 802.3at PoE+, 802.3af PoE, and Cisco prestandard (legacy) PoE on any of the RJ-45 network ports. 60W PoE is also supported on selected RJ-45 network ports Maximum power of 60W is delivered to any of the 60W PoE ports, and maximum power of 30W is delivered to any of the other RJ-45 network ports, until the PoE budget for the switch is reached The total power available for PoE per switch is as follows |
||||||||||||||
|
Model |
Power dedicated to PoE |
Number of ports that support PoE |
|||||||||||||
|
SG350X-8PMD |
240W |
8 (4 support 60W PoE) |
|||||||||||||
|
SG350X-12PMV |
375W |
12 (8 support 60W PoE) |
|||||||||||||
|
SG350X-24P |
195W |
24 (4 support 60W PoE) |
|||||||||||||
|
SG350X-24MP |
382W |
24 (4 support 60W PoE) |
|||||||||||||
|
SG350X-24PD |
375W |
24 (4 support 60W PoE) |
|||||||||||||
|
SG350X-24PV |
375W |
24 (8 support 60W PoE) |
|||||||||||||
|
SG350X-48P |
382W |
48 (8 support 60W PoE) |
|||||||||||||
|
SG350X-48MP |
740W |
48 (8 support 60W PoE) |
|||||||||||||
|
SG350X-48PV |
740W |
48 (8 support 60W PoE) |
|||||||||||||
|
Power consumption (worst case) |
Model name |
Green power (mode) |
System power consumption |
Power consumption (with PoE) |
Heat dissipation (BTU/hr) |
||||||||||
|
|
SG350X-8PMD |
EEE, Energy Detect, Short Reach |
110V=48.4W 220V=50.5W |
110V=312.4W 220V=307.3W |
1065.9 |
||||||||||
|
|
SG350X-12PMV |
EEE, Energy Detect, Short Reach |
110V=59.8W 220V=60.1W |
110V=494.5W 220V=476.4W |
1687.3 |
||||||||||
|
|
SG350X-24 |
EEE, Energy Detect, Short Reach |
110V=32.6W 220V=32.5W |
N/A |
111.2 |
||||||||||
|
|
SG350X-24P |
EEE, Energy Detect, Short Reach |
110V=48.8W 220V=49.3W |
110V=268.3W 220V=258.8W |
915.5 |
||||||||||
|
|
SG350X-24MP |
EEE, Energy Detect, Short Reach |
110V=53.2W 220V=54.1W |
110V=468.8W 220V=458.4W |
1599.6 |
||||||||||
|
|
SG350X-24PD |
EEE, Energy Detect, Short Reach |
110V=64.3W 220V=64.8W |
110V=476.6W 220V=450.6W |
1626.2 |
||||||||||
|
|
SG350X-24PV |
EEE, Energy Detect, Short Reach |
110V=56.9W 220V=56.6W |
110V=488.9W 220V=474.5W |
1668.2 |
||||||||||
|
|
SG350X-48 |
EEE, Energy Detect, Short Reach |
110V=51.6W 220V=51.4W |
N/A |
176.1 |
||||||||||
|
|
SG350X-48P |
EEE, Energy Detect, Short Reach |
110V=76.1W 220V=76.7W |
110V=492.3W 220V=481.5W |
1679.8 |
||||||||||
|
|
SG350X-48MP |
EEE, Energy Detect, Short Reach |
110V=82.5W 220V=82.5W |
110V=890.4W 220V=875.7W |
3038.2 |
||||||||||
|
|
SG350X-48PV |
EEE, Energy Detect, Short Reach |
110V=94.1W 220V=93.7W |
110V=916W 220V=914.4W |
3125.5 |
||||||||||
|
|
SG350XG-2F10 |
EEE, Energy Detect, Short Reach |
110V=82.8W 220V=83.9W |
N/A |
286.3 |
||||||||||
|
|
SG350XG-24F |
EEE, Energy Detect, Short Reach |
110V=49.5W 220V=50.4W |
N/A |
172.0 |
||||||||||
|
|
SG350XG-24T |
EEE, Energy Detect, Short Reach |
110V=146.7W 220V=144.7W |
N/A |
500.6 |
||||||||||
|
|
SG350XG-48T |
EEE, Energy Detect, Short Reach |
110V=272.6W 220V=258.2W |
N/A |
930.1 |
||||||||||
|
|
SX350X-08 |
EEE, Energy Detect, Short Reach |
110V=50.3W 220V=50.3W |
N/A |
171.6 |
||||||||||
|
|
SX350X-12 |
EEE, Energy Detect, Short Reach |
110V=63.9W 220V=64.1W |
N/A |
218.7 |
||||||||||
|
|
SX350X-24F |
EEE, Energy Detect, Short Reach |
110V=38.5W 220V=39.0W |
N/A |
133.1 |
||||||||||
|
|
SX350X-24 |
EEE, Energy Detect, Short Reach |
110V=124.1W 220V=124.5W |
N/A |
424.8 |
||||||||||
|
|
SX350X-52 |
EEE, Energy Detect, Short Reach |
110V=234.4W 220V=229.2W |
N/A |
799.8 |
||||||||||
|
Ports |
Model name |
Total system ports |
Network ports |
Uplink ports |
|||||||||||
|
|
SG350X-8PMD |
8x 2.5G + 2x 10G |
8x 2.5G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-12PMV |
12x 5G + 4x 10G |
12x 5G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-24 |
24x 1G + 4x 10G |
24x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-24P |
24x 1G + 4x 10G |
24x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-24MP |
24x 1G + 4x 10G |
24x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-24PD |
20x 1G + 4x 2.5G + 4x 10G |
20x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-24PV |
16x 1G + 8x 5G |
16x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-48 |
48x 1G + 4x 10G |
48x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-48P |
48x 1G + 4x 10G |
48x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-48MP |
48x 1G + 4x 10G |
48x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350X-48PV |
40x 1G + 8x 5G |
40x 1G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350XG-2F10 |
10x 10G copper + 2x 10G SFP+ |
10x 10G |
2x 10G SFP+ (dedicated) |
|||||||||||
|
|
SG350XG-24F |
22x 10G SFP+ |
22x 10G SFP+ |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350XG-24T |
22x 10G copper + 2x combo 10G copper/SFP+ |
22x 10G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SG350XG-48T |
46x 10G copper + 2x combo 10G copper/SFP+ |
46x 10G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SX350X-08 |
6x 10G copper |
6x 10G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SX350X-12 |
10x 10G copper + 2x combo 10G copper/SFP+ |
10x 10G |
2x 10G copper/SFP+ combo |
|||||||||||
|
|
SX350X-24F |
20x 10G SFP+ |
20x 10G SFP+ |
4x 10G copper/SFP+ combo |
|||||||||||
|
|
SX350X-24 |
20x 10G copper + 4x combo 10G copper/SFP+ |
20x 10G |
4x 10G copper/SFP+ combo |
|||||||||||
|
|
SX350X-52 |
48x 10G copper + 4x 10G SFP+ |
48x 10G |
4x 10G SFP+ (dedicated) |
|||||||||||
|
Console port |
Cisco standard RJ-45 console port |
||||||||||||||
|
OOB management port |
Dedicated Gigabit Ethernet management port for Out-Of-Band (OOB) management on SG350XG and SX350X models |
||||||||||||||
|
USB slot |
USB Type A slot on the front panel of the switch for easy file and image management |
||||||||||||||
|
Buttons |
Reset button |
||||||||||||||
|
Cabling type |
UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+ |
||||||||||||||
|
LEDs |
System, master, stack ID, link/speed per port |
||||||||||||||
|
Flash |
256 MB |
||||||||||||||
|
CPU |
1.3-GHz and 800-MHz (dual-core) ARM for SG350XG and SX350X models 800-MHz ARM for all other models |
||||||||||||||
|
CPU memory |
512 MB |
||||||||||||||
|
Packet buffer |
All numbers are aggregate across all ports because the buffers are dynamically shared: |
||||||||||||||
|
Model name |
Packet buffer |
||||||||||||||
|
SG350X-8PMD |
1.5 MB |
||||||||||||||
|
SG350X-12PMV |
3 MB |
||||||||||||||
|
SG350X-24 |
1.5 MB |
||||||||||||||
|
SG350X-24P |
1.5 MB |
||||||||||||||
|
SG350X-24MP |
1.5 MB |
||||||||||||||
|
SG350X-24PD |
3 MB |
||||||||||||||
|
SG350X-24PV |
3 MB |
||||||||||||||
|
SG350X-48 |
3 MB |
||||||||||||||
|
SG350X-48P |
3 MB |
||||||||||||||
|
SG350X-48MP |
3 MB |
||||||||||||||
|
SG350X-48PV |
6 MB |
||||||||||||||
|
SG350XG-2F10 |
1 MB |
||||||||||||||
|
SG350XG-24F |
2 MB |
||||||||||||||
|
SG350XG-24T |
2 MB |
||||||||||||||
|
SG350XG-48T |
4 MB |
||||||||||||||
|
SX350X-08 |
3 MB |
||||||||||||||
|
SX350X-12 |
3 MB |
||||||||||||||
|
SX350X-24F |
3 MB |
||||||||||||||
|
SX350X-24 |
3 MB |
||||||||||||||
|
SX350X-52 |
10 MB |
||||||||||||||
|
Supported SFP/SFP+ modules |
SKU |
Media |
Speed |
Maximum distance |
|||||||||||
|
MGBSX1 |
Multimode fiber |
1000 Mbps |
500 m |
||||||||||||
|
MGBLX1 |
Single-mode fiber |
1000 Mbps |
10 km |
||||||||||||
|
MGBLH1 |
Single-mode fiber |
1000 Mbps |
40 km |
||||||||||||
|
MGBT1 |
UTP Cat 5e |
1000 Mbps |
100 m |
||||||||||||
|
GLC-LH-SMD= |
Single-mode fiber |
1000 Mbps |
10 km |
||||||||||||
|
GLC-BX-U= |
Single-mode fiber |
1000 Mbps |
10 km |
||||||||||||
|
SFP-H10GB-CU1M= |
Copper coax |
10 Gbps |
1 m |
||||||||||||
|
SFP-H10GB-CU3M= |
Copper coax |
10 Gbps |
3 m |
||||||||||||
|
SFP-H10GB-CU5M= |
Copper coax |
10 Gbps |
5 m |
||||||||||||
|
SFP-10G-SR= |
Multimode fiber |
10 Gbps |
26 m to 400 m |
||||||||||||
|
SFP-10G-LR= |
Single-mode fiber |
10 Gbps |
10 km |
||||||||||||
|
SFP-10G-SR-S= |
Multimode fiber |
10 Gbps |
26 m to 400 m |
||||||||||||
|
SFP-10G-LR-S= |
Single-mode fiber |
10 Gbps |
10 km |
||||||||||||
