Mô tả sản phẩm

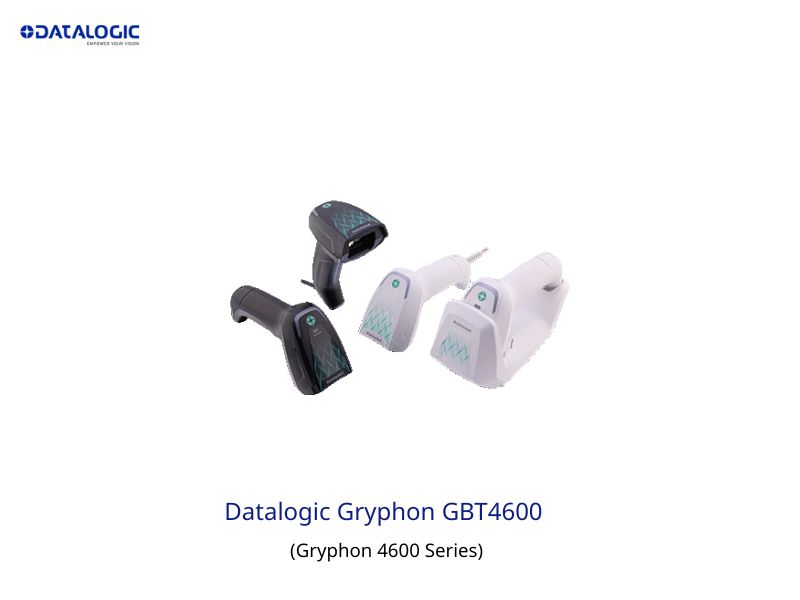

Datalogic Gryphon GBT4600 là chiếc máy quét mã vạch không dây cao cấp ứng dụng công nghệ Bluetooth 5.2 mới nhất (bao gồm cả Classic và Low Energy – BLE). Đột phá lớn nhất của dòng sản phẩm này là hệ thống sạc pin không dây bằng cảm ứng từ (Wireless Charging). Hệ thống này loại bỏ hoàn toàn các điểm tiếp xúc kim loại, giải quyết triệt để vấn đề rỉ sét và bảo trì chân sạc, giúp thiết bị hoạt động bền bỉ 24/7.
Tính năng
-
Kết nối Bluetooth 5.2 mạnh mẽ, cho phạm vi hoạt động lên đến 100 mét trong không gian mở và cho phép kết nối tối đa 7 máy quét vào cùng một trạm gốc.
-
Cung cấp 2 tùy chọn năng lượng: Pin Lithium-Ion 3250 mAh (hơn 80.000 lần quét/sạc) hoặc bộ siêu tụ điện SuperCapacitor không dùng pin, cho phép sạc đầy cực nhanh chỉ trong 30 phút (đọc 7.000 lần).
-
Hệ thống giải mã AI thông minh kết hợp với dung sai chuyển động lên tới 70 IPS, giúp bắt gọn các mã vạch di chuyển nhanh ngay từ lần lướt đầu tiên.
-
Hỗ trợ phản hồi rung (Vibration) khi quét thành công, tối ưu cho môi trường ồn ào hoặc những nơi cần sự yên tĩnh.
Ứng dụng
-
Bán lẻ và siêu thị: Mang lại sự linh hoạt tuyệt đối cho thu ngân khi quét các mặt hàng cồng kềnh ngay trong xe đẩy.
-
Bệnh viện: Phiên bản y tế (Healthcare) hỗ trợ chăm sóc bệnh nhân tại phòng (In-room patient care) cực kỳ an toàn, không lo lây nhiễm chéo.
Thông số kỹ thuật máy quét mã vạch Datalogic Gryphon GBT4600 – Gryphon 4600 Series:
| CORDLESS MODELS COMMUNICATIONS | |
|---|---|
| Gryphon GBT4600 (Bluetooth Wireless Technology) | Bluetooth: 5.2, Classic & Low Energy (LE).[cite: 11] Selectable output power: Class 1, 2, 3.[cite: 11] Radio frequency: 2.4GHz.[cite: 11] Radio range: 100.0 m / 328.0 ft (Class 1, open air, reader connected with the base station. Range with connection to other Bluetooth peripherals may show different results).[cite: 11] Standard profiles: SPP (serial port emulation), HID (Human Interface Device) and HOGP (keyboard emulation).[cite: 11] Max. n. of readers connected with the same base station: 7.[cite: 11] Security: data encryption; scanner authentication[cite: 11] |
| Gryphon GM4600 (Datalogic STAR Cordless System) | Working frequency: ISM Bands, 433.92 MHz and 915 MHz[cite: 11] Effective Radiated Power @433.92 Mhz < 10 dBm[cite: 11] Effective Radiated Power @915 Mhz < 15 dBm[cite: 11] Configurations: Point to Point and Point to Multipoint.[cite: 11] Max. Readers per Radio Receiver: 16[cite: 11] Two Way Communications[cite: 11] Radio Range: 50.0 m / 164.0 ft minimum (Open Air)[cite: 11] |
| DECODING CAPABILITY | |
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ Linear codes.[cite: 11] |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; QR Code; QR Code Dot Code; GS1 Digital Link[cite: 11] |
| Postal Codes | Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)[cite: 11] |
| Stacked Codes | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites[cite: 11] |
| Digital Watermarking | Digimarc Barcodes[cite: 11] |
| OCR | OCR-A, OCR-B, MICR[cite: 11] |
| CORDLESS MODELS ELECTRICAL | |
| Battery | Battery Type: Lithium-Ion: 3,250 mAh[cite: 11] Charge Time: from empty to full 3.5 hours; from 10% to 80% 2 hours (@ 12 VDC external power)[cite: 11] Number of scans from full charge: +80,000[cite: 11] |
| SuperCap Capacitor | Capacity: 1000 F[cite: 11] Charge time: from empty to full 30 min; from 10% to 80% 10 min. (@ 12 VDC ext. power)[cite: 11] Number of scans from full charge: 7,000[cite: 11] |
| Cradle Indicator LEDs | Battery/SuperCap Charging (flashing orange); Charge Completed (steady green)[cite: 11] |
| Current | Charging (Typical): < 6 W[cite: 11] Scanner only: 300 mA @ 3.7 V (Operative)[cite: 11] Cradle only: 100 mA @ 5 V (Operative)[cite: 11] |
| Input Voltage (Cradle) | 4.5 – 14 VDC +/- 5% (WLC4090/WLC4190/WLC4690)[cite: 11] |
| CORDED MODELS ELECTRICAL | |
| Current | Operating: < 300 mA @ 5V; < 150 mA @ 12V[cite: 11] Standby/Idle: < 70 mA @ 5V; < 40 mA @ 12V[cite: 11] |
| Input Voltage | GD4690 (HP models): 4.5 – 14.0 VDC +/- 5%[cite: 11] GD4620 (HD models): 5 VDC +/- 5%[cite: 11] |
| ENVIRONMENTAL | |
| Ambient Light | 0 – 110,000 lux[cite: 11] |
| Drop Resistance | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.[cite: 11] |
| Tumble Specification | Designed to withstand 2,000 1.5 ft. / 0.5 m tumbles[cite: 11] |
| Trigger Resistance | Withstands 10 Mhits[cite: 11] |
| ESD Protection (Air Discharge) | 16 KV[cite: 11] |
| Humidity (Non-Condensing) | 0 – 95%[cite: 11] |
| Particulate and Water Sealing | IP52[cite: 11] |
| Temperature | Operating: 0 to 50 °C / 32 to 122 °F[cite: 11] Storage/Transport: -40 to 70 °C / -40 to 158 °F[cite: 11] |
| INTERFACES | |
| Interfaces | CORDLESS MODELS: WLC4690: USB Type C/USB/RS-232 Multi-Interface[cite: 11]CORDED MODELS: GD4620 (HD models): USB type C/USB only[cite: 11] GD4690 (HP models): USB type C/USB/RS-232 Multi-Interface[cite: 11] |
| PHYSICAL CHARACTERISTICS | |
| Colors Available | Black, White[cite: 11] |
| Dimensions | 18 x 6.5 x 7.9 cm / 7.1 x 2.6 x 3.1 in (corded/cordless models)[cite: 11] 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in (corded models with presentation mode base)[cite: 11] |
| Weight | 144 g / 5.1 oz (corded models)[cite: 11] 426 g / 15.0 oz (corded models with presentation mode base)[cite: 11] 218 g / 7.7 oz (cordless models, battery included)[cite: 11] |
| READING PERFORMANCE | |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2[cite: 11] |
| Imager Sensor | High Performance models (HP, dual sensor): 1.5 Megapixel (1360 x 1120 pixels) + VGA (640 x 600 pixels)[cite: 11] High Density models (HD, single sensor): 1.5 Megapixel (1360 x 1120 pixels)[cite: 11] |
| Light Source | Aiming: LED Green central cross[cite: 11] Illumination: dual color Warm White and Hyper Red LED[cite: 11] |
| Motion Tolerance | 70 IPS[cite: 11] |
| Print Contrast Ratio (Minimum) | 15%[cite: 11] |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65°[cite: 11] |
| Reading Indicators | Beeper (adjustable tone); Good-read feedback: Datalogic ‘Green Spot’ on the Code; Good-read LED; Vibration feedback option (cordless models)[cite: 11] |
| Resolution (Maximum) | 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils[cite: 11] |
| READING RANGES | |
| Typical Depth of Field | Label size, printing resolution, contrast, and ambient light dependent.[cite: 11] (Minimum distance determined by symbol length and scan angle.)[cite: 11] |
| High Performance Models (HP) | Code 39: 3 mils: 2.5 to 20.0 cm / 1.0 to 7.9 in[cite: 11] Code 39: 5 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in[cite: 11] Code 39: 10 mils: 0(*) to 60.0 cm / 0(*) to 23.6 in[cite: 11] Code 39: 20 mils: 0(*) to 125.0 cm / 0(*) to 49.2 in[cite: 11] Code 128: 3 mils: 3.5 to 14.5 cm / 1.4 to 5.7 in[cite: 11] Code 128: 5 mils: 1.5 to 30.0 cm / 0.6 to 11.8 in[cite: 11] EAN/UPC: 13 mils: 0(*) to 100.0 cm / 0(*) to 39.4 in[cite: 11] PDF417: 5 mils: 2.5 to 17.0 cm / 1.0 to 6.7 in[cite: 11] PDF 417: 10 mils: 0.5(*) to 38.5 cm / 0.2(*) to 15.2 in[cite: 11] Data Matrix: 5 mils: 3.5 to 10.0 cm / 1.4 to 3.9 in[cite: 11] Data Matrix: 10 mils: 0.5(*) to 29.5 cm / 0.2(*) to 11.6 in[cite: 11] QR Code: 10 mils: 0.5(*) to 25.0 cm / 0.2(*) to 9.8 in[cite: 11] |
| High Density Models (HD) | Code 39: 3 mils: 2.5 to 15.0 cm / 1.0 to 5.9 in[cite: 11] Code 39: 5 mils: 0.5 to 22.0 cm / 0.2 to 8.7 in[cite: 11] Code 39: 10 mils: 0(*) to 35.0 cm / 0(*) to 13.8 in[cite: 11] Code 39: 20 mils: 0(*) to 52.0 cm / 0(*) to 20.5 in[cite: 11] Code 128: 3 mils: 3.5 to 11.5 cm / 1.4 to 4.5 in[cite: 11] Code 128: 5 mils: 1.5 to 20.0 cm / 0.6 to 7.9 in[cite: 11] EAN/UPC: 13 mils: 0(*) to 50.0 cm / 0(*) to 19.7 in[cite: 11] PDF417: 5 mils: 2.5 to 15.0 cm / 1.0 to 5.9 in[cite: 11] PDF 417: 10 mils: 0.5(*) to 27.0 cm / 0.2(*) to 10.6 in[cite: 11] Data Matrix: 5 mils: 3.5 to 10.0 cm / 1.4 to 3.9 in[cite: 11] Data Matrix: 10 mils: 0.5(*) to 20.0 cm / 0.2(*) to 7.9 in[cite: 11] QR Code: 10 mils: 0.5(*) to 20.0 cm / 0.2(*) to 7.9 in[cite: 11] |
| SAFETY & REGULATORY | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use.[cite: 11] The Quick Reference Guide for this product can be referred to for a complete list of certifications.[cite: 11] |
| Environmental Compliance | Complies to China RoHS; Complies to EU RoHS[cite: 11] |
| UTILITIES | |
| Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge.[cite: 11] |
| Datalogic Connect | The next-generation IoT cloud platform that empowers organizations to remotely control, manage, and |
